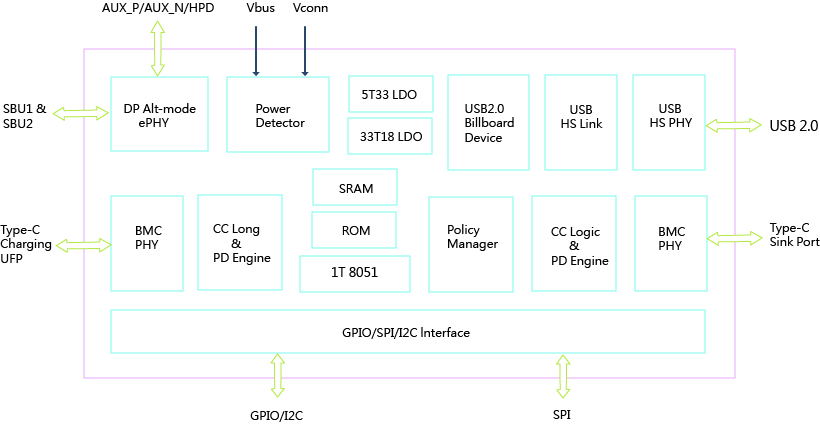

VL100是一个高度集成的单芯片，适应于USB Type-C 转DisplayPort交替模式控制器的设备，比如：Type-C 影像适配器，Type-C TV/显示器/投影仪，和Type-C多功能扩展设备。

VL100集成了充电UFP功能，从而在可以执行DP ALT模式视频输出功能的同时，也能对外部设备进行PD电源检测。外部电源支持5V USB电源，5V DC直流，或从Type-C适配器直接取电

VL100会对Type-C source端连接PD主机的sink端的电源进行智能管理，支持电池充电模式。内置了sbu1 / sbu2开关可支持Type-C线缆翻转功能。符合VESA协会定义的DP ALT模式的Type-C规格也可以适用于USB2.0的广告牌。

VL100内置线性稳压器和电源要求探测器，在3.3V或5V电源工作下，支持10个GPIO引脚可用于端口功率检测，功率放电控制，电源开关控制，数据开关控制，或其他特殊应用，支持通过USB设备固件升级。

CC Logic & PD Engine supporting one charging UFP and one sink port

- Compliant to USB Type-C Cable and Connector Specification Revision 1.1

- Compliant to USB Power Delivery Specification Revision 2.0 Version 1.1

- Integrated Type-C transceivers, supporting one charging UFP and one sink port

- DP mode Discovery/Enter/Exit

- DP configure & status update

- Built-in pull-up/pull down resistors, including Rp, Rd, and Ra DP Alt-mode Configuration

- Compliant to VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0

- DFP_D Pin Assignment “C”, “D”, “E”, and “F”

- UFP_D Pin Assignment “C” and “D”

- Built-in Aux_CH switch

- DP source/sink connection detection Charging UFP Capability

- Charging connected PD hosts either by external power or through VL100’s Type-C sink port

- Support up to PD power Profile 4

- Support charging dead battery USB Billboard Device

- Compliant to USB Device Class Definition for Billboard Devices Revision 1.0a

- Integrated in-house USB2.0 PHY Fast 8051 Macro cell 80C32-Compatible Microcontroller

- Standard 1T 8051 instruction set

- Embedded Mask ROM and SRAM Built-in Voltage Regulators

- 5.0V to 3.3V LDO

- 3.3V to 1.8V LDO

- Auto power source selection between Vbus and Vconn GPIOs for Special Function and Control

- 10 GPIOs in QFN40 and 5 GPIOs in QFN32 for application customization

- One I2C master interface Misc

- Support external SPI flash for firmware upgrade Applications

- Type-C video adapters

- Type-C Multi-function docks

- Type-C TV, monitor, and projector

Part Number	Package	Description	Download
VL100	QFN32 / QFN40	USB Type-C to DisplayPort with PD
VL101	QFN32 / QFN40	USB Type-C to DisplayPort with PD
